Description

Groynes, breakwaters, and artificial reefs are grey adaptation measures commonly implemented to counteract erosion, reduce wave energy and the impact of waves in coastal areas (or in some case in rivers).

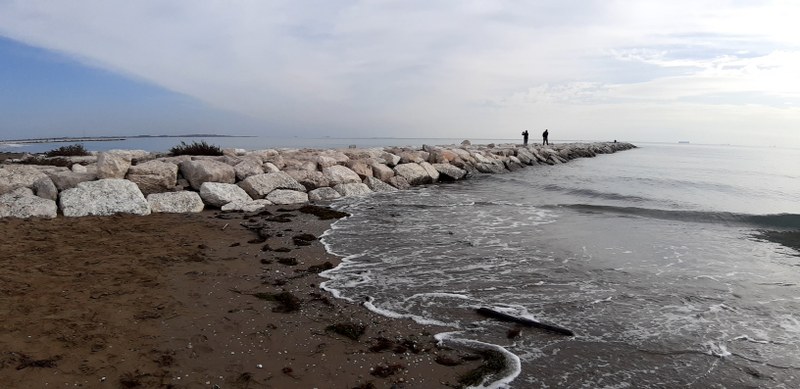

A groyne is a shore protection structure built perpendicular to the shoreline of the coast (or river), over the beach and into the shoreface (the area between the nearshore region and the inner continental shelf). It aims to reduce longshore drift and trap sediments. A groyne field or system is a series of groynes acting together to protect a beach. Rock is often used as construction material. Wooden groynes, steel groynes, rubble-mound and sand-filled bag groynes, or groynes made of concrete elements are also used. . Generally, rock groynes are  preferred. Due to their permeable nature, they are more durable and absorb more wave energy.. Timber or gabions may be used for temporary structures.

Groynes trap sediments from longshore drift to protect the coast behind the sand layer i from erosion. Their effectiveness depends on their extension into the river or sea. As any other systems acting on the long-shore drift, they can negatively affect the transportation and sedimentation pattern of underflow areas, causing downdrift erosion. This is because groynes do not add sediment to the shoreface but instead distribute the available material differently. Another adverse effect (especially for rivers) can be an increase in current velocity in the constricted flow area, with increasing bed erosion and a deepening of the bed level. Rip marine currents adjacent to the groynes can present a hazard to the bathers. They can also cause sediment transportation away from the coastal system, especially during storm events. Groynes can also be used in estuaries to decrease tidal flow velocities at the shoreline. Rock groynes can be more effective in this case, as wooden groynes tend to reflect energy rather than absorbing it. This depends on the type of wooden structures; in general screens are less effective. A more recent alternative are submerged groynes, which have limited impact on the landscape and allow sediments to pass over them after the formation of a ramp. These sediments are deposited downdrift since the current velocity reduces after passing over the crest.

A breakwater is a coastal structure (usually a rock and rubble mound structure) parallel or close to the coast. It reduces incoming wave energy, provides a sheltered beach area and shelters vessels from waves and currents. A breakwater typically comprises various stone layers and is armoured with large armour stone or concrete armour units. An exception are e.g. vertical (caisson) breakwaters. A breakwater can be built at the shoreline or offshore (detached or reef breakwater). As for groynes, disadvantages of breakwaters are primarily related to their interference with longshore sediment transport. When this issue is poorly considered in the design and implementation phases, these structures can cause sediment starvation downdrift.

Due to changes in wave activity, currents, and water quality, groynes and breakwaters affect the landscape appearance (except for submerged alternatives) and may negatively impact recreational activities like swimming, surfing, and other water sports. These structures can make tourists feel more secure, but strong currents may still be present, and this should be communicated to avoid accidents.

Notwithstanding, their presence is generally beneficial for coastal tourism (the largest sector of the EU Blue Economy in terms of GVA and employment (EU Blue Economy Observatory), as these structures help widen or preserve beaches and tourism facilities located along the coast. Moreover, groynes are usually enjoyed by recreational fishers and sunbathers, representing very common coastal protection structures.

Artificial reefs (or reef breakwaters) are rubble mound breakwaters of typically single-sized stones with a crest at or below sea level. They are usually constructed offshore (often parallel to the shore). They are less intrusive and (depending on orientation) can have less impact on longshore processes. Similarly to breakwaters, artificial reefs reduce wave energy and protect the beach from erosion. Artificial reefs mimic some functions of natural reefs, such as protecting, regenerating, or enhancing populations of several marine species. They can be continuous or segmented.

Rock size, face slopes, crest elevation and crest width, toe protections and aprons should be designed properly to build groynes, breakwaters and reefs.  The natural characteristics of the sites have to be considered since they may have an important impact on the shoreline. Sand may build up behind breakwaters and artificial reefs to form “salients” (bell-shaped sand deposits). Sand can accumulate to connect with the breakwater and form a “tombolo”. This is a stretch of sand developed by wave refraction, diffraction and longshore drift which forms a ‘neck’ connecting the structure to the shore.

Considering the significant impact these structures can have on the coastal environment, they should only be considered as part of a holistic adaptive management policy. Such a policy should take the local characteristics of the specific site into account, such as their location and the potential effects on the whole coast. The construction of groynes, breakwaters and artificial reefs can also be integrated into a beach nourishment programme, complement other green measures and be part of integrated coastal zone management plans.

Adaptation Details

IPCC categories
Structural and physical: Engineering and built environment options
Stakeholder participation

Stakeholder participation generally does not play a major role in the technical design and construction of groynes, breakwaters, and artificial reefs, unless they are part of a larger coastal defence plan. However, these measures can raise concern about possible environmental impacts on the marine ecosystem and about the visual impacts on the coastal landscape. Conflicts can arise between coastal communities and economic sectors: the tourism sector generally benefits from protected beaches or safer touristic moorings, while local communities can be worried about the modification of the coastal landscape, habitat and biodiversity loss and environmental impacts in general. Such conflicts call for an active involvement of all potentially affected actors, including local authorities, coastal communities, tourism operators, research institutions and/or NGOs.

These defence structures might be the subject of Environmental Impact Assessments, depending on national laws and regulation. When they are implemented in sites, protected under the EU Natura 2000 network, an appropriate assessment considering their potential impacts is usually required. Both processes must ensure the right to access information and formally consult the interested parties. Similarly, the EU Floods Directive, the EU Water Framework Directive and the EU Maritime Spatial Planning Directive call for public participation processes that may include this typology of projects.

Success and limiting factors

In general, groynes are efficient to protect certain parts of the coast and maintain upper beach stability. They are effective on sand and shingle beaches, and in rivers and estuaries to reduce water flows. By contributing to the widening of beaches they can provide co-benefits for recreation and tourism. Breakwaters provide additional co-benefits, such as safe mooring and berthing procedures for vessels in ports. They enhance workability and provide thus higher efficiency in loading and unloading vessels. Submerged reefs, in addition to counteracting the wave strength, can provide substrates for benthic species (flora and fauna), attracting fish and thus improving biodiversity. Submerged reefs can even become attractive for snorkelling, creating new tourism opportunities.

Groynes, breakwaters and artificial reefs can be combined with a number of other approaches, including green measures as beach nourishment and dune construction and strengthening. They have been applied around the world for many years. Consequently,  broad experience can support their correct design and construction.

Artificial defence structures also have negative impacts that suggest a careful evaluation before their implementation. Groynes, breakwaters, or reefs tend to modify longshore drift, and have adverse effects on adjacent beaches by causing downdrift erosion. To avoid these effects on the coastline, artificial nourishments and/or dune development are often preferable over hard structures unless there are other needs, such as the safe berthing of ships. However, the extent of the blocking of longshore drift, disturbance of adjacent beaches and degradation of landscape values depends very much on the design, orientation of the structure and the main wave/sediment transport direction at the specific site.

Artificial structures can also have negative impacts on landscape values affecting the appearance of beach areas and thus the beach users. Breakwaters can cause side deposition of mud, can retain algae and capture litter or debris from ships, making the beach area both unpleasant and unsafe. Currents around the ends of breakwaters and reefs can be strong and dangerous for swimmers. Submerged reefs are offshore, away from beach users. If they don't function as intended, they can be a hazard for navigation and water sports, such as surfing with potential impacts on tourism.

Costs and benefits

Construction costs depend significantly on the structure dimensions. Costs can be highly influenced by the selected construction material, local availability of suitable material, amount of the material needed, transport costs to the construction sites, environmental conditions on site and associated costs of beach nourishment. The latter are frequently required to enhance grey measures’ efficacy. Cost assessment should also include the analysis of wave conditions and sea currents as well as sediment transport dynamics. The assessment should be performed by specialized staff in order to properly design the structures.

According to the estimates reported in UNEP-DHI (2016), purchase and transport of rocks based on transport distance of about 50 km can cost about 25 USD/ton (about 21 EUR per ton) while placing costs are about 40 USD/ton (about 34 EUR per ton). Additional costs, though rarely considered, are related to the maintenance of these measures in the long-term perspective.

Indirect benefits of the stabilization and enhancement of beaches can lead to increased tourist attractiveness. Apart from situations where local strong currents may be generated, by stabilizing the shoreline and reducing wave action, groynes generally create also safer beach environments. This can lead to a more pleasant and secure experience for swimmers and families with children, thus increasing the appeal of the beach to a broader range of tourists with positive impacts on the local economy.

Implementation time

Groynes, breakwaters and artificial reefs are rather simple, small-scale interventions, which are implemented at the local scale (stretch of a coast in erosion). The simple placement of the material on-site can take short time (from weeks to months). However, the whole process of selecting the best solution, collecting and analysing data on waves, currents and sediment transportation, properly designing the infrastructure and involving the stakeholders in a participated process certainly requires more time (about 1 year).

Lifetime

When constructed, the protective function of breakwaters, groynes and artificial reefs can be maintained for many years, requiring only basic monitoring and maintenance. Breakwaters have a typical design lifetime of 30-50 years. This is the case for most rock structures. Wooden groynes have a lifetime of about 10-25 years; and groynes made of gabions have a lifetime of only 1-5years.

Reference information

Websites:
References:

UNEP-DHI (2016). Managing climate change hazards in coastal areas. The coastal hazard wheel decision-support system: Catalogue of hazard management options. United Nations Environment Programme & Lars Rosendahl Appelquist ISBN: 978-92-807-3593-2

DHI (2017). Shorelines management guidelines.

PAP/RAC (2021) Handbook on coastal resilience for the Adriatic, INTERREG AdriAdapt project, Split.
