CALCHAS - An integrated analysis system for the effective fire conservancy of forests
To address the rising wildfire threats in Mediterranean forests, the CALCHAS project created the Integrated Forest Fire Analysis System (IFFAS), a transferable system using simulations and meteorological data for effective fire conservation. Training was provided for local authorities.
Fire is the most significant natural threat to forests and wooded areas of the Mediterranean basin. The average annual number of forest fires in the Mediterranean basin, particularly in southern Europe, is close to 50,000 - twice as many as during the 1970s. The natural plant ecosystem of the Mediterranean basin is rich in shrubs and coniferous forests and, thus, particularly susceptible to fire. Meanwhile, summer periods are now warmer, drier and longer and projected changes in the climate suggest increases in the frequency and severity of forest fires. A disaster risk arises when a hazard meets particularly vulnerable areas and systems. A key factor increasing vulnerability is the inadequacy of disaster-management planning. Forest fire catastrophes have revealed serious gaps in co-ordination, chain of command problems, and inadequate resource management and allocation. Often, information was not updated or was inadequate, leading to inefficient decision making.
Case Study Description
Challenges
An important step in disaster management is the preparedness stage, which is directly connected with the reduction of risks. Evaluation of hazards, good planning, proper management strategies and co-operation are vital elements and were the main focus of the CALCHAS project resulting in an integrated analysis system for the effective fire conservancy of forests.
Objectives
In two pilots areas (Troodos, Cyprus; Grammos, Greece), the project aimed to:
- Improve the knowledge and skills of civil protection professionals and services on effective temporal and spatial planning of resources;
- Improve the knowledge and skills of decision-makers on evacuation planning;
- Increase the effectiveness and readiness of fire brigades, civil protection, local communities and any other stakeholders to deal with forest fire threats.
Adaptation Options Implemented In This Case
Solutions

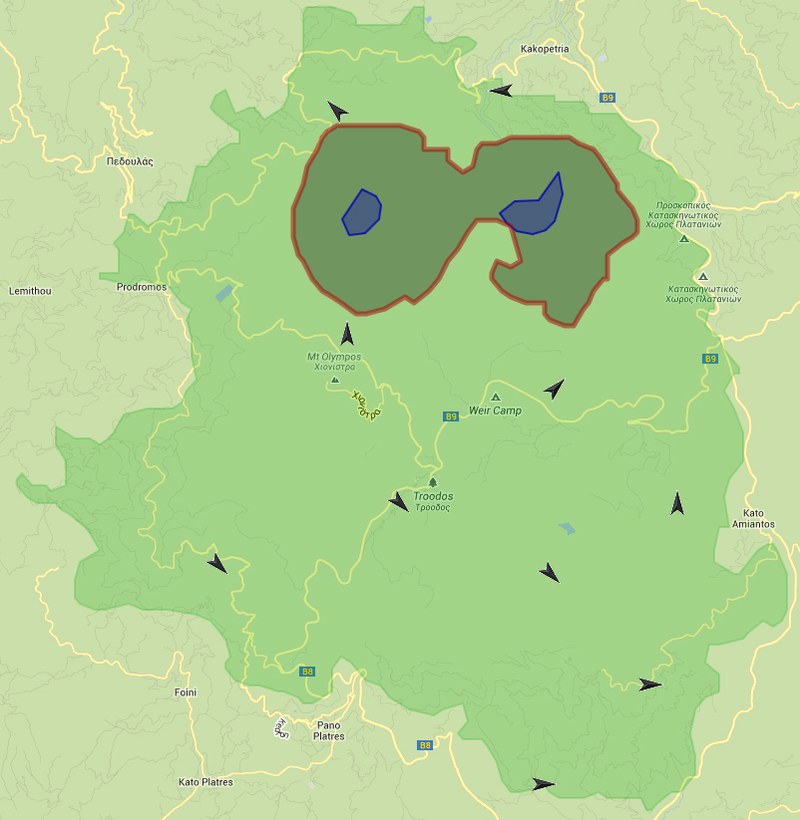

The CALCHAS project developed and established an Integrated Forest Fire Analysis System (IFFAS) for the effective fire conservancy of forests. It uses a forest-fire simulation tool that is capable of estimating the evolution of a wild forest fire. The tool uses inputs data on ignition risk, real-time meteorological data, the vegetation of the area and spatial information (iso-contours and ground elevation).
Meteorological stations are installed in the areas of the two pilot sites (Troodos in Cyprus and Grammos in Greece) more subjected to fire risk and structural characteristics on vegetation provide detailed information useful to know when environmental conditions are favourable for fire development. The fire simulator tool is then used to predict fire development and to help in managing it.
Relevance
Case mainly developed and implemented because of other policy objectives, but with significant consideration of Climate Change Adaptation aspects
Additional Details
Stakeholder Participation
Competent authorities such as fire departments, civil protection departments, forestry authorities, local authorities, ministry of agriculture and environment, as well as private citizens were involved in the IFFAS development and in the dissemination of the project results in order to deal with forest fire threats. During the last three months of the CALCHAS project, IFFAS was delivered to the competent forest fire authorities of the two pilot sites: the Fire & Civil Protection Departments of Kastoria Region in Greece and the Department of Forest and Ministry of Agriculture, Natural Resources, and Environment of Cyprus.
Success and Limiting Factors
The use of meteorological stations and morphological information provides detailed information on the environmental characteristics of the two pilot areas. It also involves local stakeholders such as fire services, civil protection and local communities so the information obtained with the application of the system can be disseminated in order to discuss further strategies to cope with fire risk.
IFFAS is transferable to other forest areas, even if it requires to be tailored and must incorporate some specific characteristics of the areas where it is applied. The vegetation (species, density and flammability), the topography and spatial parameters of the area, as well as the identified possible areas for a fire to start, need to be determined for each site in which IFFAS is applied. Within IFFAS, these inputs can be combined with local meteorological data (to be available locally) to generate a real-time estimation/prognosis of the evolution of the wild fire.
One of the limits of the system could be the ability of local authorities (civil protection, fire brigades, and decision makers) to apply the simulator and to manage the information obtained from it. To deal with this potential limit, 5 training sessions (3 for Cyprus and 2 for Greece) on the use of the software were organized within the CALCHAS project. Furthermore the authorized users of the simulation platform were advised to contact the project’s team at any time, for any further information and help.
Costs and Benefits
The Integrated Forest Fire Analysis System (IFFAS) is a useful tool for the responsible authorities:
- At scenario level: (i) for personnel training purposes, (ii) for planning of the necessary fire conservancy infrastructures (fire monitoring stations, firebreak zones, water tanks, etc.).
- At operational level: for decision making and coordination during forest fire incidents.
Total budget for the CALCHAS project amounted at 2,337,114.00 € (EU contribution through the LIFE program accounted for 1,158,803.00 €). This included cost for IFFAS development, project management, dissemination, capacity building, etc. The required overall investment cost for the development and application of IFFAS in other forest areas is calculated to be around € 350.000 for a 100 km2 forest area and € 1.000.000 for a 500 km2 forest area. The costs for IFFAS application in other areas include: study of site specific characteristics, data collection and analysis, application of the developed methodologies, design of IFFAS for the specific areas, development of the required hardware (meteorological stations, auxiliary equipment, etc.), installation of the hardware, testing of IFFAS, and training of the competent authorities. These costs can vary depending on several parameters such as geomorphological and flora complexity of the area, location and remoteness of the forest area, and availability of existing data for the specific forest area.
Implementation Time
IFFAS was developed and tested within the CALCHAS project which run between March 2010 and August 2013.
Life Time
There is no lifespan limit for IFFAS as long as proper maintenance operations are ensured.
Reference Information
Contact
Ioannis Spanos
TERRA NOVA Ltd
39 Kaisareias str., 11527 Athens, Greece
Τel. +30 210 777 5597
E-mail: spanos@terranova.gr
Websites
Reference
EU LIFE program
