Berlin Biotope Area Factor – Implementation of guidelines helping to control temperature and runoff

© Senatsverwaltung für Stadtentwicklung und Umwelt

Inner city Berlin mandates green space in new building developments through the Biotope Area Factor (BAF). This regulation, part of the Berlin Landscape Programme since 1994, responds to urban climate challenges, reducing vulnerability by introducing green spaces to mitigate heatwaves and improve runoff management.

In inner city Berlin, plans for the development of new buildings are subjected to the Berlin Landscape Programme, which includes a regulation requiring a proportion of the area to be left as green space: the Biotope Area Factor (BAF) or BFF (Biotop Flächenfaktor). All potential green areas, such as courtyards, roofs and walls are included in the BAF. The regulation is a part of a larger set of documents relating to landscape planning and design as well as species protection. It responds to the need to encourage more green space in densely built-up urban areas.

Climate change is expected to increase and intensify heatwaves and water-related extremes; two impacts that are particularly relevant for the urban context. By encouraging the introduction of more green space, the BAF is an important mechanism to reduce local climate change vulnerability as its measures help to lower the temperatures and improve the runoff management. The implementation of the BAF started in 1994 and is still on-going. A considerable number of new built areas in the inner city centre have implemented this regulation, translating it into green areas.

Case Study Description


Berlin climate is temperate, with a significant urban heat island effect, which can raise the temperature by up to 4ºC relative to surrounding areas. While there is much uncertainty about the precise impacts of climate change on the city, scenarios indicate that temperatures will be higher, extreme weather events like heatwaves and intense rain and hailstorms will be more frequent, air pollution will increase, and there will be a water shortage (the latter despite extensive sources of freshwater in the city, due to longer, drier periods without precipitation, increased water consumption, and the diversion of water further upstream). The frequency of heatwaves in particular is expected to increase as a result of climate change, to up to 2 events every 33 years in 2050 and up to 12 events every 33 years by the end of the century under the RCP 8.5 (Climate Adapt, Urban Adaptation Map Viewer). These changes in climate are expected to have negative impacts on the population, especially considering that Berlin's city centre is characterized by a high density of construction. Intensively used urban areas are affected by:

  • A high degree of soil sealing, resulting from the increase in built up areas and impermeable surfaces;
  • Inadequate replenishment of the groundwater, due to the rapid runoff of rainfall into the sewage system;
  • Excessive warming and lack of humidity;
  • A constant decrease in biodiversity, due to limited extension of green space.

The BAF contributes to the following adaptation and environmental quality goals:

  • Safeguarding and improving the microclimate and air quality, reducing the urban heat island effect and therefore reducing vulnerability to heatwaves;
  • Preserving and enhancing soil functions and the water balance, reducing vulnerability to extreme precipitation events and related run-off.
  • Creating and enhancing the quality of habitats for plant and animals;
  • Improving the residential environment.

The Biotope Area Factor establishes that the development of new buildings requires a proportion of the area to be left as a green space. The BAF provides developers, architects and designers with clear but flexible guidelines on the portion of the plot of land that must be planted or provide other green space functions in terms of: improvement of the microclimate, urban cooling, sustainable drainage, improvement of natural habitats and enhancement of the quality of the residential environment. Specific solutions implemented in the BAF include: (i) greening of functional spaces (e.g. bike or bin sheds); (ii) planting trees and shrubs or, in smaller areas, climbing plants to create green walls; (iii) introducing green roofs; (iv) paving restricted to main routes  and use of permeable surfaces elsewhere.

These measures reduce radiation fluxes, provide shade, provide a cooling effect inside buildings and outside, improve air and water quality, and improve the proper management of storm-water run-off. The strength of the BAF concept is that it allows flexibility of the site design: the developer may decide what green space measures are applied, and where, as long as the required green space ratio is achieved.

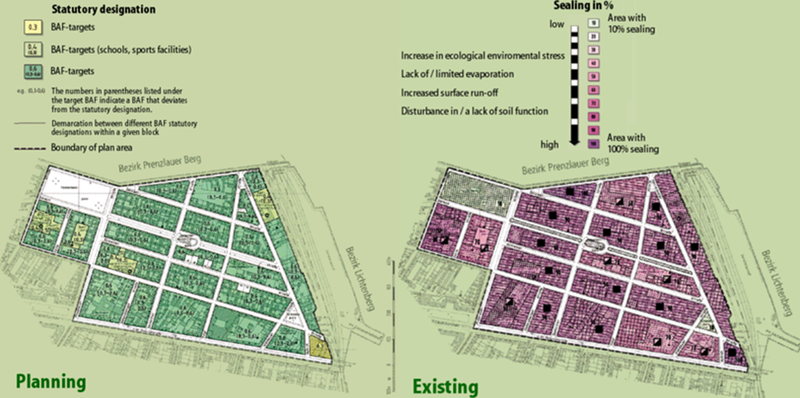

The BAF formula calculates the proportion of an area that needs to be green space: BAF = Ecologically Effective Surface Areas/Total Land Area. BAF targets depend on the specific uses of an area. The Ecologically Effective Surface Areas is a weighted sum of the areas belonging to the different categories foreseen in the measure, where weighting factors capture the different “ecological values” of these categories. Different types of green spaces are weighted differently according to these “ecological value”, which are based on evapotranspiration capacity, permeability, possibility to store rainwater, relationship to soil functioning and provision of habitat for plants and animals. For example, the weighting factor of a sealed asphalt surface is 0; that of extensive green roofs is 0.5; that of surfaces with vegetation connected to soil below is 1. Residential and public areas need to achieve a BAF target of 0.6 while commercial, business and administrative areas are requested to achieve a lower target of 0.3.

Since December 2019, the prescribed weighting factors for vertical greenery and roof greening has undergone the following refinements: vertical greenery without connection to the ground: 0.7 per m2; extensive roof greening: 0.5 per m2; semi-intensive roof greening: 0.7 per m2; intensive roof greening: 0.8 per m2. The developers can thus use a wide range of options combining different areas with different types of surfaces for achieving the required standard.


Case mainly developed and implemented because of other policy objectives, but with significant consideration of Climate Change Adaptation aspects

Additional Details

Stakeholder participation

The Biotope Area Factor was formulated for inner-city districts of Berlin by a large number of experts who agreed on the necessary proportion of green space areas for different development types, based on the layout of the buildings. Public consultation has always been considered highly important for landscape planning in Germany. The Landscape Programme was subject to an extensive public consultation process in 1986 in a targeted consultation exercise “Berlin hat Pläne (Berlin has plans)”. The second public consultation for the Programme was held in 1993, several years after the fall of the Berlin Wall, with the Plan finally approved in 1994. The BAF was established in landscape plans as an ordinance. As part of the above procedures, public agencies and environmental agencies could participate in its development. In addition, it was mandatory that the proceedings would be publicly displayed not only for residents of the particular area but Berlin-wide. Although there was a possibility for stakeholders to participate, they were not directly approached and therefore, stakeholder involvement varied depending on the case. Participating stakeholders included the local community, the public administration, and environmental NGOs.

Success and Limiting Factors

Use of regulations has proven to be an effective mean of increasing green cover in the Berlin city centre as every new development needs to comply with BAF targets. The flexibility of the approach provides significant advantages. Developers can choose between a number of different options for greening or creating permeable surfaces and pick those that are the most beneficial and effective for themselves and the users of the development. Collaboration between the Berlin departments of landscape planning and land use planning has ensured that the two planning instruments central to the implementation of the BAF are working in a coordinated way. Another factor that clearly contributes to its success is that the measures visibly contribute to the development of a better environment in the inner city.

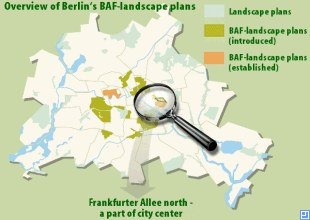

BAF is compulsory only in areas where legally binding Landscape Plans are present (16% of Berlin in 21 distinct areas). Outside these areas, the BAF is voluntary and can be used as a guideline for encouraging environmental measures to be incorporated when changes to the existing building structures are proposed. Due to its simplicity and the rising awareness of environmental issues, architects, builders and property owners tend to use the BAF, which is a sign of its success. However, the fact that BAF is voluntary outside areas covered by Landscape plans makes it difficult to speculate on its actual potential for implementation. The discussion with one of the local contact persons highlighted that in “some districts the nature conservation has a higher value than in others, and so some local administrators are more successful in convincing the builders to apply it. Sometimes builders themselves have interest to make their project “greener” and more sustainable. In some districts, builders need to gain the acceptance of the residents, and BAF can help. Thus, the realization of the BAF depends on many factors, mainly the active communication of the agencies in the districts and the environmental consciousness of the residents.

Costs and Benefits

The costs of the measures selected on the basis of the BAF are absorbed into construction costs. If building owners are confronted with disproportionately high expenses, they normally ask for an alleviation of the BAF which is generally approved. An overall evaluation of costs has not been carried out due to a shortage of staff.

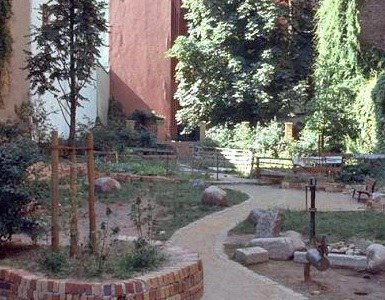

Benefits observed so far include an improved residential environment and quality of life and an increase of the effective area for maintaining biodiversity through restoring greened inner courtyards and front gardens. Other benefits such as reduced vulnerability to heatwaves and to water-related extremes are expected but have not been quantified, yet.

Implementation Time

The BAF implementation begun in 1994 and is still on-going.

Life Time

More than 50 years, depending on the specific actions and the management activities.

Reference Information


Sabine Kopetzki
Senatsverwaltung für Umwelt, Verkehr und Klimaschutz
Stadt und Freiraumplanung
Am Köllnischen Park 3, 10179 Berlin

Sebastian Hausmann
Senatsverwaltung für Umwelt, Verkehr und Klimaschutz
Abteilung III - Klimaschutz, Naturschutz und Stadtgrün
Stellenzeichen III B 1-4, Raum 222
Am Köllnischen Park 3 / 10179 Berlin


Green and Blue Space Adaptation for Urban Areas and Eco Towns (GRaBS) and Senatsverwaltung für Umwelt, Verkehr und Klimaschutz (Berlin)

Published in Climate-ADAPT Jun 7, 2016   -   Last Modified in Climate-ADAPT Apr 18, 2024
